| Part Number |

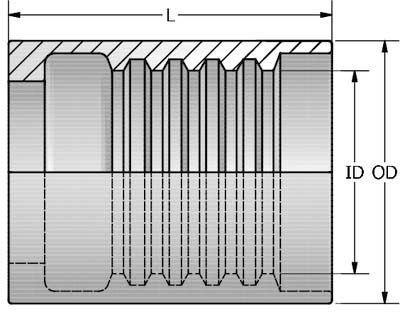

Hose I.D. (in.) | L | O.D. | I.D. | Description |
| 203-S16-200 |
3/16 | 1.000 | 0.687 | 0.487 | 1 and 2 Wire Combination Stainless Steel Type 316 Ferrule - Skive Required for SAE 100R1, 100R2, 100R3, Hydra-Lite I & II |
| 204-S16-200 |
1/4 | 1.000 | 0.814 | 0.628 | 1 and 2 Wire Combination Stainless Steel Type 316 Ferrule - Skive Required for SAE 100R1, 100R2, 100R3, Hydra-Lite I & II |
| 206-S16-200 |
3/8 | 1.000 | 0.937 | 0.755 | 1 and 2 Wire Combination Stainless Steel Type 316 Ferrule - Skive Required for SAE 100R1, 100R2, 100R3, Hydra-Lite I & II |
| 208-S16-200 |
1/2 | 1.230 | 1.125 | 0.880 | 1 and 2 Wire Combination Stainless Steel Type 316 Ferrule - Skive Required for SAE 100R1, 100R2, 100R3, Hydra-Lite I & II |
| 210-S16-200 |
5/8 | 1.250 | 1.225 | 0.962 | 1 and 2 Wire Combination Stainless Steel Type 316 Ferrule - Skive Required for SAE 100R1, 100R2, 100R3, Hydra-Lite I & II |
| 212-S16-200 |
3/4 | 1.486 | 1.437 | 1.220 | 1 and 2 Wire Combination Stainless Steel Type 316 Ferrule - Skive Required for SAE 100R1, 100R2, 100R3, Hydra-Lite I & II |
| 216-S16-200 |
1 | 1.486 | 1.750 | 1.460 | 1 and 2 Wire Combination Stainless Steel Type 316 Ferrule - Skive Required for SAE 100R1, 100R2, 100R3, Hydra-Lite I & II |
| 420-S16-400 |
1-1/4 | 2.210 | 2.250 | 1.912 | 1 and 2 Wire Combination Stainless Steel Type 316 Ferrule - Skive Required for SAE 100R1, 100R2, 100R3, Hydra-Lite I & II |
| 424-S16-400 |
1-1/2 | 2.580 | 2.562 | 2.200 | 1 and 2 Wire Combination Stainless Steel Type 316 Ferrule - Skive Required for SAE 100R1, 100R2, 100R3, Hydra-Lite I & II |
| 432-S16-400 |
2 | 3.070 | 3.125 | 2.690 | 1 and 2 Wire Combination Stainless Steel Type 316 Ferrule - Skive Required for SAE 100R1, 100R2, 100R3, Hydra-Lite I & II |
| 504-S16-500 |
- | - | - | - | - |
| 504-S16-500 |
1/4 | 1.043 | 0.873 | 0.630 | 1 and 2 Wire Combination Non-Skive Stainless Steel Type 316 Ferrule for SAE 100R1AT, 100R2AT, 100R5, Hydra-Lite I & II |
| 506-S16-500 |
3/8 | 1.150 | 1.060 | 0.793 | 1 and 2 Wire Combination Non-Skive Stainless Steel Type 316 Ferrule for SAE 100R1AT, 100R2AT, 100R5, Hydra-Lite I & II |
| 508-S16-500 |
1/2 | 1.330 | 1.153 | 0.905 | 1 and 2 Wire Combination Non-Skive Stainless Steel Type 316 Ferrule for SAE 100R1AT, 100R2AT, 100R5, Hydra-Lite I & II |
| 512-S16-500 |
3/4 | 1.470 | 1.531 | 1.211 | 1 and 2 Wire Combination Non-Skive Stainless Steel Type 316 Ferrule for SAE 100R1AT, 100R2AT, 100R5, Hydra-Lite I & II |
| 516-S16-500 |
1 | 1.500 | 1.934 | 1.565 | 1 and 2 Wire Combination Non-Skive Stainless Steel Type 316 Ferrule for SAE 100R1AT, 100R2AT, 100R5, Hydra-Lite I & II |
