| Part Number |
Hose I.D. (in.) | Hose O.D. (in.) | Rated W.P. (psi) | Min. Burst (psi) | Min. Bend Radius (in.) | Wt. Per Ft. (lbs) | Recommended for | Tube | Reinforcement | Cover | Temperature | Recommended Couplings | Din Tube O.D. (MM) | Tube Nut Part Number | Sleeve Part Number | D1(2) | D1(3) | D2 | L7 | L7(2) | L7(3) | L12 | N2 | S2 | NPTF |
| 1313-12 |

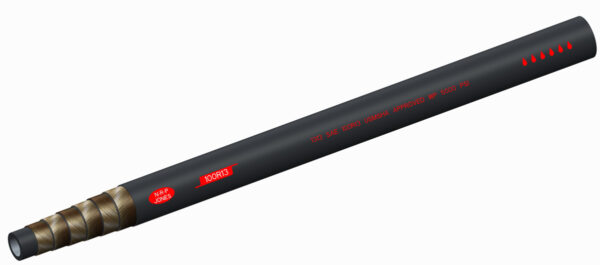

0.750 | 1.26 | 5000 | 20000 | 9.5 | 1.13 | Extra high pressure hydraulic oil lines for heavy duty service applications with crude oils, fuel oils, lubricating oils, and gasoline. Meets or exceeds SAE 100R13. | Black, oil resistant, Neoprene (CR) | Multiple plies of spirally-wrapped high tensile steel wire | A synthetic rubber which is weather and temperature resistant. MSHA approved. Red mylar layline | -40°F to +250°F | 1W, 1Y | 30 | 9201-H-30 | 9202-H-30 | - | - | 0.940 | - | - | - | 1.280 | 1.630 | 1.610 | 1 - 11-1/2 |
| 1313-16 |
1 | 1.52 | 5000 | 20000 | 12 | 1.35 | Extra high pressure hydraulic oil lines for heavy duty service applications with crude oils, fuel oils, lubricating oils, and gasoline. Meets or exceeds SAE 100R13. | Black, oil resistant, Neoprene (CR) | Multiple plies of spirally-wrapped high tensile steel wire | A synthetic rubber which is weather and temperature resistant. MSHA approved. Red mylar layline | -40°F to +250°F | 1W, 1Y | 38 | 9201-H-38 | 9202-H-38 | - | - | 1.250 | - | - | - | 1.280 | 1.670 | 1.610 | 1-1/4 - 11-1/2 |
| 1313-20 |
1-1/4 | 1.96 | 5000 | 20000 | 16.5 | 2.41 | Extra high pressure hydraulic oil lines for heavy duty service applications with crude oils, fuel oils, lubricating oils, and gasoline. Meets or exceeds SAE 100R13. | Black, oil resistant, Neoprene (CR) | Multiple plies of spirally-wrapped high tensile steel wire | A synthetic rubber which is weather and temperature resistant. MSHA approved. Red mylar layline | -40°F to +250°F | 1W, 1Y | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 1313-24 |
1-1/2 | 2.26 | 5000 | 20000 | 20 | 3.21 | Extra high pressure hydraulic oil lines for heavy duty service applications with crude oils, fuel oils, lubricating oils, and gasoline. Meets or exceeds SAE 100R13. | Black, oil resistant, Neoprene (CR) | Multiple plies of spirally-wrapped high tensile steel wire | A synthetic rubber which is weather and temperature resistant. MSHA approved. Red mylar layline | -40°F to +250°F | 1W, 1Y | - | - | - | 0.170 | 0.170 | - | 0.850 | 0.850 | 0.850 | - | - | 0.500 | - |
| 1313-32 |
2 | 2.79 | 5000 | 20000 | 25 | 4.44 | Extra high pressure hydraulic oil lines for heavy duty service applications with crude oils, fuel oils, lubricating oils, and gasoline. Meets or exceeds SAE 100R13. | Black, oil resistant, Neoprene (CR) | Multiple plies of spirally-wrapped high tensile steel wire | A synthetic rubber which is weather and temperature resistant. MSHA approved. Red mylar layline | -40°F to +250°F | 1W, 1Y | - | - | - | 0.260 | 0.260 | - | 0.980 | 0.980 | 0.980 | - | - | 0.750 | - |
